Kwad - 44 Inch - DZ with LightCall for Availability

542

/ 1

Part Number: FP7644DZ
UPC: 00840506097995
Availability: Call for Availability

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

Info & Guides

Click Here to View Specsheets

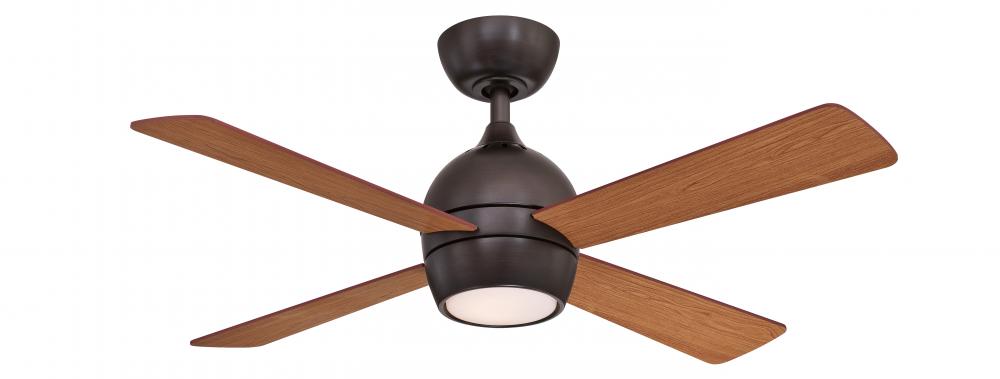

Fanimation continues to elevate the style you've come to know with Kwad. This ceiling fan will add the perfect touch to your space with its four blade design and LED light kit. Kwad includes a handheld remote control and is smarthome compatible when combined with the optional WiFi receiver. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use

Specifications

Energy Information at High Speed

Airflow:

3533 Cubic Feet per Minute

Electricity Rate:

44 Watts (excluded lights)

Airflow Efficiency:

80 Cubic Feet Per Minute Per Watt

Details

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

Bronze /vendors/vendorImages bronze.jpg

Style:

Traditional

Option:

Dry Rated

LED

Voltage:

10-99

Glass Finish or Style:

Frosted

Opal

Lumens:

1101-1600

Number of Blades:

4 Blades

Subfinish:

Dark Bronze

Location Rating:

Dry Rated

Wattage:

18w

Category:

Fan-Uni

Family:

Kwad 44

Voltage:

120

Number of Bulbs:

1 Bulbs

Additional Info:

3 speed AC motor with reverse switch - fan speed, light and sleep timer functions

3533 CFM on High

Limited Lifetime Warranty

Set of 4 blades with multiple finish options and 18 watt LED light kit included

TR500 handheld remote with 23A battery included

WiFi or bluetooth compatible (required controls sold separately)

Air Flow CFM:

3533

Air Flow Efficiency:

Amperage:

0.37

Blade Finish:

Cherry/Dark Walnut

Blade Pitch:

Bulb Type:

18W LED Module

Canopy:

Diameter- 6.5 Height- 2.58

Diameter:

8.4

Down Rod Included:

4.5

Electricity Used:

Harmonized Codes:

8414.51.3000

Kelvin:

3000

Length:

Light Kit Included:

Yes

Motor Fan Speed:

Motor RPM:

195

Motor Size:

153 X 13

Motor Type:

Remote Control Included:

TR500

Ship Carton Height:

10.12

Ship Carton Length:

25.91

Ship Carton Width:

10.87

Ship Weight:

16.69

Sold By:

Each

Warranty:

Limited Lifetime Warranty

Weight:

14.77

Airflow Efficiency Low:

147

Airflow Efficiency Medium:

105

Avg Airflow Efficiency:

Avg CFM Energy:

2579

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Blade Finish Method:

Paper Overlay

Blade Material:

Wood

Blade Reversible:

Yes

Blade Sweep:

Cap Included:

Carton Cubic Feet:

1.6494

Cartons Per Unit:

Case Height:

10.12

Case Length:

25.91

Case Weight Pounds:

16.69

Case Width:

10.87

CEC Uploaded:

Yes

Ceiling To Blade Edge:

12.27

Ceiling to Bottom with LK:

15.05

CFM Low:

1497

CFM Medium:

2633

Compatible Accessories:

CCK8002DZ, DR1-12DZ, DR1-18DZ, DR1-24DZ, DR1-36DZ, DR1-48DZ, DR1-60DZ, DR1-72DZ, DR1-CPDZ, SCB1-52

Compatible Controls:

BTCR9, BTR9, CRL4WH, WFR50

Compatible Wall Controls:

CWRL4LA, CWRL4WH, WC2WH, WR501WH

Country of Origin:

China

CRI:

Current Draw Low:

0.18

Current Draw Medium:

0.28

DOE Classification:

LSSD

Dry Rated:

Yes

Exempt from DOE Procedure:

Fan Energy Star:

Included Control Type:

Handheld

Leadwire:

Light Kit Energy Star:

Maximum Slope Degree:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Product Certification:

UL/CUL

Regulated Product:

Yes

Reverse Switch Location:

Motor Housing

RPM Low II:

RPM Medium IV:

140

Safety Rating:

UL/cUL

Voltage Cycles:

60HZ

Watts Low:

Watts Medium:

Watts Per Bulb:
