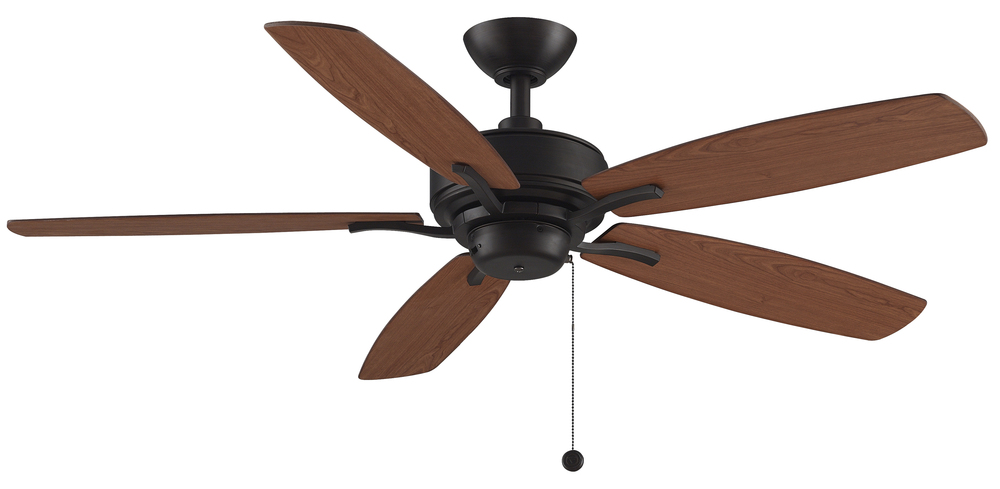

Aire Deluxe - 52 inch - DZ with CY/DWA Blades

Aire Deluxe - 52 inch - DZ with CY/DWA BladesCall for Availability

$
271
96
/ 1
  • Part Number: FP6284DZ
  • UPC: 00840506063914
  • Availability: Call for Availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Aire Deluxe from Fanimation is an exceptional transitional design for any and every indoor space. Available in 52 and 44 inch blade sweeps, three different finishes, a variety of blade finishes, and with the option of a light kit. With all of the possibilities, there is an Aire Deluxe for everyone. The Aire Deluxe features an AC motor that operates on three forward and three reverse speeds. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Specifications
Energy Information at High Speed
Airflow:
4908 Cubic Feet per Minute
Electricity Rate:
55 Watts (excluded lights)
Airflow Efficiency:
89 Cubic Feet Per Minute Per Watt
Details
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Bronze /vendors/vendorImages bronze.jpg
Style:
Traditional
Option:
Dry Rated
Voltage:
10-99
Number of Blades:
5 Blades
Subfinish:
Dark Bronze
Location Rating:
Dry Rated
Category:
Fan-Uni
Family:
Aire Deluxe
Voltage:
120
Additional Info:
3 Speed AC Motor with reverse switch
3941 CFM on High
Lifetime Limited Warranty
Pull Chain Operated
Set of 5 reversible 52 inch blades and (2) 9 watt LED bulbs and light kit included
WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM:
4908
Air Flow Efficiency:
89
Amperage:
0.46
Blade Finish:
Cherry/Dark Walnut
Blade Pitch:
12
Blade Span:
52
Canopy:
Diameter- 5.91 Height- 2.13
Diameter:
9.06
Down Rod Included:
4.5
Electricity Used:
55
Harmonized Codes:
8414.51.3000
Length:
52.00
Light Kit Included:
No
Material:
Wood
Motor Fan Speed:
3
Motor RPM:
158
Motor Size:
153 x 15
Motor Type:
AC
Pull Chain Included:
Yes
Ship Carton Height:
9.3
Ship Carton Length:
23
Ship Carton Width:
10.9
Ship Weight:
17.67
Sold By:
Each
Warranty:
Limited Lifetime Warranty
Weight:
15.36
Airflow Efficiency Low:
183
Airflow Efficiency Medium:
126
Avg Airflow Efficiency:
102
Avg CFM Energy:
3496
Avg Energy Use Watts:
34
Avg Estimated Yearly Energy Cost:
10
Avg Estimated Yearly Energy Cost on HIGH:
15
Blade Finish Method:
Paper Overlay
Blade Material:
Wood
Blade Reversible:
Yes
Blade Sweep:
52
Cap Included:
No
Carton Cubic Feet:
1.3493
Cartons Per Unit:
1
Case Height:
9.3
Case Length:
23
Case Weight Pounds:
17.67
Case Width:
10.9
CEC Uploaded:
Yes
Ceiling To Blade Edge:
10.59
Ceiling to Bottom No LK:
12.77
CFM Low:
1897
CFM Medium:
3288
Compatible Accessories:
CCK8002DZ, DR1-12DZ, DR1-18DZ, DR1-24DZ, DR1-36DZ, DR1-48DZ, DR1-60DZ, DR1-72DZ, DR1-CPDZ, SCK1-52DZ
Compatible Controls:
BTCR9, BTR9, CR500, CRL4WH, WFR50
Compatible Wall Controls:
CW5LA, CW5WH, CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH
Country of Origin:
China
Current Draw Low:
0.2
Current Draw Medium:
0.33
DOE Classification:
LSSD
Dry Rated:
Yes
Exempt from DOE Procedure:
No
Fan Energy Star:
No
Included Control Type:
Pull Chain
Leadwire:
54
Maximum Slope Degree:
19
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
5
Product Certification:
UL
Regulated Product:
Yes
Reverse Switch Location:
Switch Housing
RPM Low II:
66
RPM Medium IV:
113
Safety Rating:
UL/cUL
Voltage Cycles:
60HZ
Watts Low:
10
Watts Medium:
26
