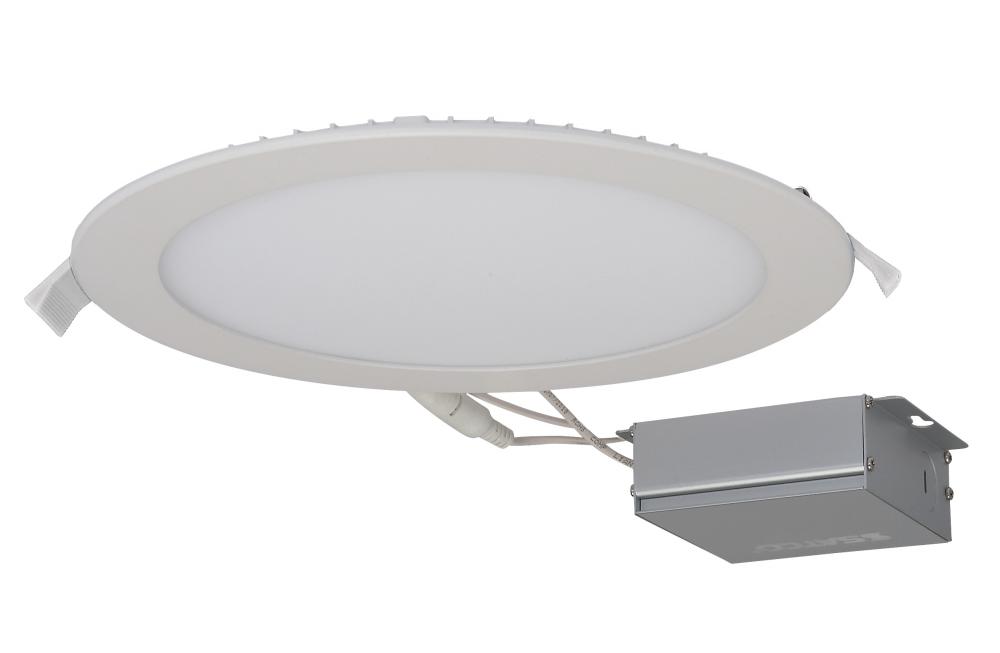

24 watt LED Direct Wire Downlight; Edge-lit; 8 inch; 4000K; 120 volt; Dimmable; Round; Remote Driver
Call For Price
- Part Number: S11607
- UPC: 00045923116070
- Availability: Item has been discontinued and is no longer in stock
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
24 watt LED Direct Wire Downlight; Edge-lit; 8 inch; 4000K; 120 volt; Dimmable; Round; Remote Driver
Specifications
Details
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
White /vendors/vendorImages white.jpg
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
White /vendors/vendorImages white.jpg
Category:
Recessed
Sub Category:
Direct Wire
Additional Info:
Integrated j-box for direct wire installation
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Cool White
Diameter:
8.880000000000001
Dimmable:
Yes-Dimmable
Each Height:
9.41
Each Length:
9.41
Each Width:
1.81
Lumens:
1800L
Tariff Code:
9405.11.8010
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.200A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
108
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
8.125 in. Cutout
Clearance Height:
2
Connection:
Direct Wired
Country Of Origin:
China
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimming Type:
Forward Phase or Reverse Phase or Phase Selectable
Each Cube:
0.09279999999999999
Each Quantity:
1
Efficacy:
75.00 LPW
FCC Compliant:
Yes
Feature 1:
Diameter: 8.88 inches, Height: 0.94 inches
Feature 2:
Dimmable
Feature 3:
Wet location rated for indoor use
Feature 4:
4000K Cool White Light
Feature 5:
Superior 90 CRI light quality
Feature 6:
5 year limited warranty
Feature 7:
1800 lumens
Feature 8:
Rated for 50,000 hours
Feature 9:
FCC and RoHS compliant
Finish Family:
White
Fixture shape:
Round
Has Driver:
Yes
IC Rated:
Yes
Incandescent Equivalent:
120W
Indoor Outdoor:
Indoor
JA8 Compliant:
Yes
Lens Finish:
Frost
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:
Satco's S11607 24 watt, 8 inch recessed downlight offers a tremendous amount of versatility in multiple applications. Requiring less than one inch of ceiling height, the fixture can be installed in cabinets, basements, and any other areas where space i
Material:
Aluminum
Max Drywall Thickness:
5/8 in.
Mounting Procedure:
Ceiling
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
Rec Spacing Between Fixtures:
6 ft. to 8 ft.
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Satco's S11607 24 watt, 8 inch recessed downlight offers a tremendous amount of versatility in multiple applications. Requiring less than one inch of ceiling height, the fixture can be installed in cabinets, basements, and any other areas where space i
Safety Listing:
cETLus - Listed
SDS class:
LED_Lamp
Short Description:
24WLED/DW/EL/8/940/RND/RD
Sloped Ceiling Compatible:
No
Temperature (CCT):
4000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Trim Color:
White
Wattage Selectable:
No
Weight Lb.:
1.89
