NIGHTFOX Standard Grade Locking Type Electronic
Call For Price
- Part Number: ELC4536
- UPC: 00078275142961
- Availability: Call for Availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

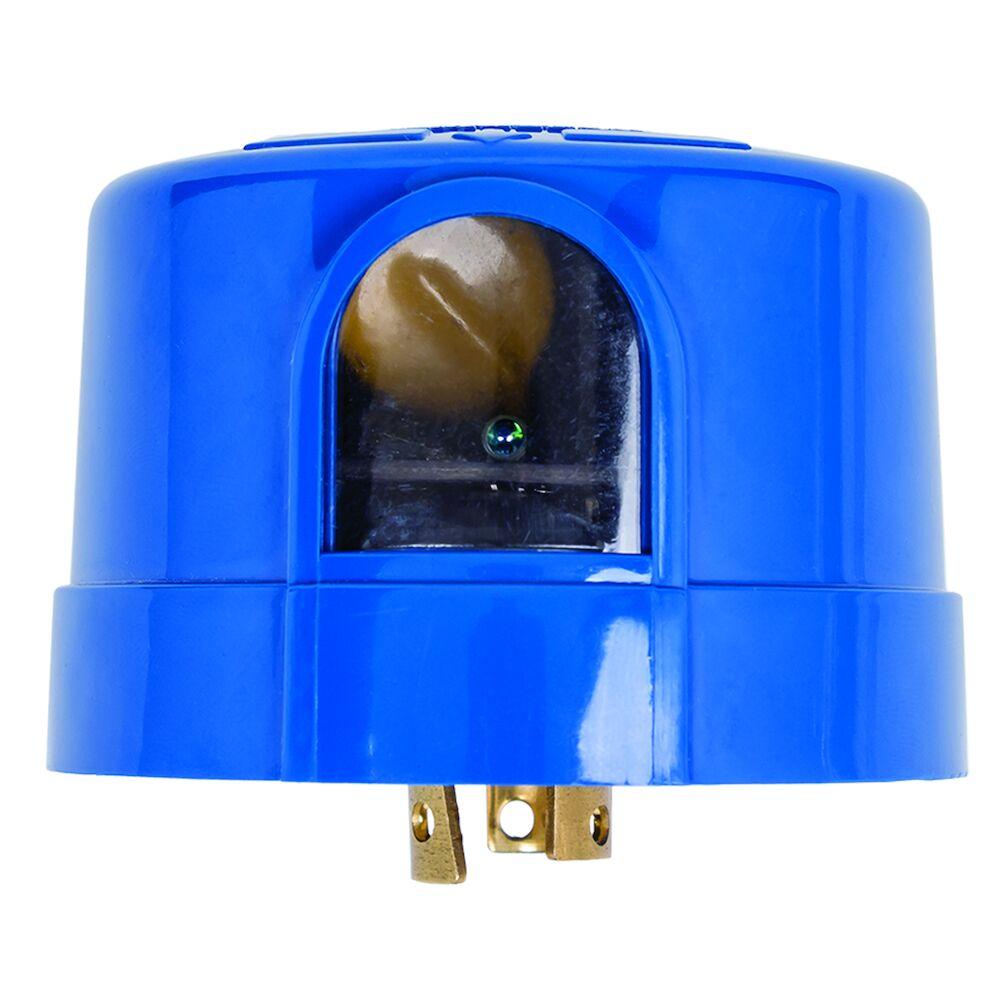

NightFox™ Standard Grade Locking Type Electronic Photocontrol, 120-277 V
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Controls And Accessories
Application:
Dusk to Dawn Lighting Control
Brand Name:
Intermatic
Brochure:
Connection:
Lock Type
Country Of Origin:
MX
Enclosure:
NEMA 410
Frequency Rating:
50/60
Installation Link:
Mounting:
Twistlock Mount
Operating Cycles:
3650
Operating Temperature:
-40 to +158 DEG F -40 to +70 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Power Consumption:
<0.5 WTT @ 277 VAC
RoHS Compliance:
Yes
Sensitivity:
1.5 FC ON, 2.25 FC OFF
Sensor:
Solid State Photo Sensor (Silicon IR Filtered)
Size:
3.18 DIAMETER X 2.204 HEIGHT IN, 80.77 DIAMETER X 55.98 HEIGHT MM
Spec Sheet:
Special Features:
Features: Electronic Photocell, LED Fixtures Totaling 550 WTT @ 277 VAC, Non-Drifting Silicon Light Sensor IR Filtered, Fail Mode: ON
Standard:
ANSI C136.10, UL Recognized, cULus Listed, CAS Approval, Title CA 20 Listed, RoHS Compliant
Stock Type:
Shelf Stock
Supply Voltage:
105 - 305
Timing Range:
2 - 5
Type:
TwistLock Photocell
UNSPSC:
39121524
Warranty Link:
Weight:
.270 L
