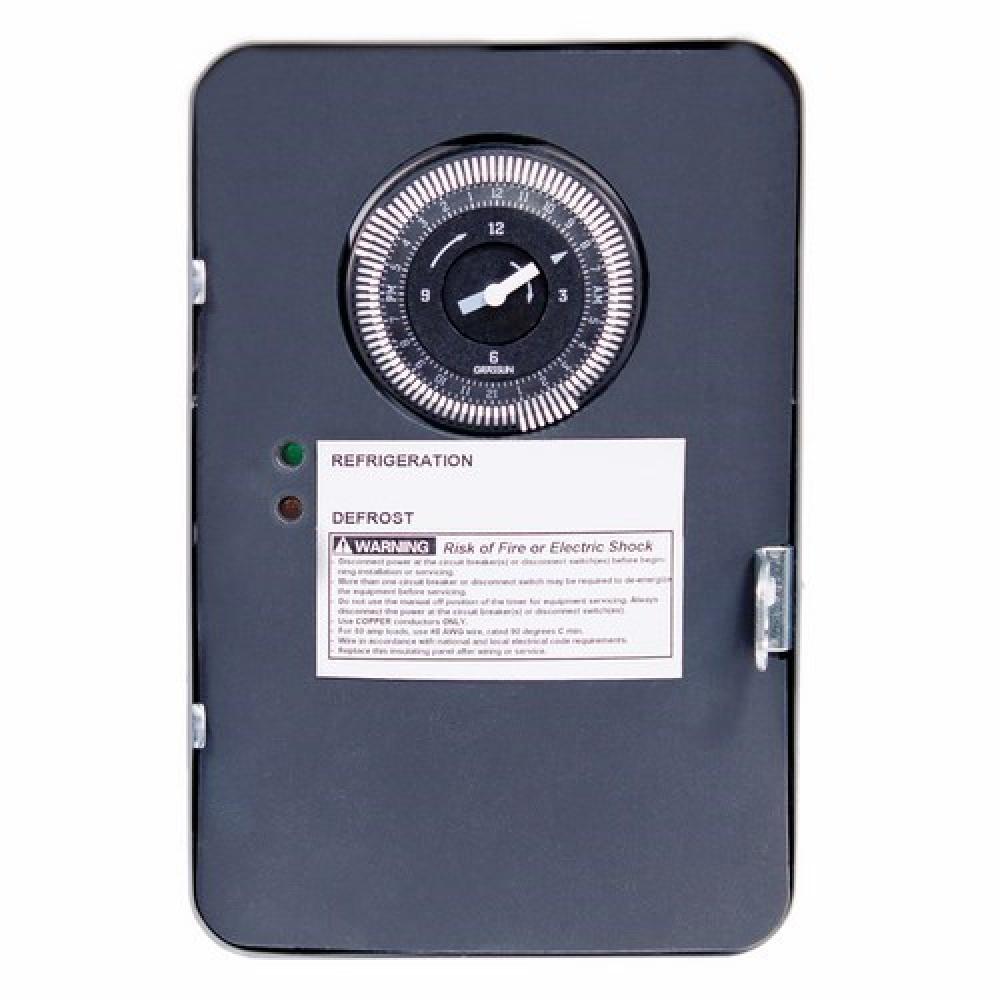

AUTO VOLT DFRST,INDOOR ENCL
Call For Price
- Part Number: DTAV40IM
- UPC: 00078275127616
- Availability: Call for Availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
The Auto Voltage Defrost Control, NEMA 1 Metal Enclosure Defrost control is field adjustable for 120V or 240V operation and shall have defrost initiation times settable to the quarter hour via captive trippers at 15 minute intervals. The defrost timer is housed in a NEMA 3R indoor/outdoor plastic enclosure. The relay output is 40A Resistive, 2HP @ 250VAC. Defrost terminations are completed by time and a remote temperature or pressure switch.
Specifications
Details
Category:
Lighting Controls
Subcategory:
Lightswitches
Action:
1 x SPST/1 x DPST
Amperage Rating:
40
Application:
Defrost, HVACR
Brand Name:
Intermatic
Connection:
Box Lug
Contact Rating:
40 AMP @ 120 - 240 VAC (Resistive)
Country Of Origin:
DE
Enclosure:
NEMA 1 Metallic
Environmental Conditions:
0 - 95 RH Non-Condensing
Length:
8.0300 IN
Mounting:
Wall Mount
Number Of Poles:
2
Operating Cycles:
50000
Operating Temperature:
-40 to +104 DEG F, -40 to +40 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
8.88 HEIGHT X 6.61 WIDTH X 3 DEPTH IN, 22.56 HEIGHT X 16.79 WIDTH X 7.62 DEPTH CM
Spec Sheet:
Special Features:
Features: Time Initiated Temperature, Pressure or Time Terminated, Replaces Over 40 Competitive Models, Automatically Adjusts Voltages between 120 and 240 VAC, No Tools Required, Mounts in Existing Enclosures, Moisture Resistant Conformal Coated Board, Ind
Standard:
cULus Listed, HVACR
Stock Type:
Shelf Stock
Sub Brand:
Grasslin
Timer Duration:
23 HR 45 MIN
Timing Range:
15 MIN - 23 HR 45 MIN
Type:
Auto Voltage Defrost
UNSPSC:
39122208
Voltage Rating:
120 - 240
Weight:
2.500 L
