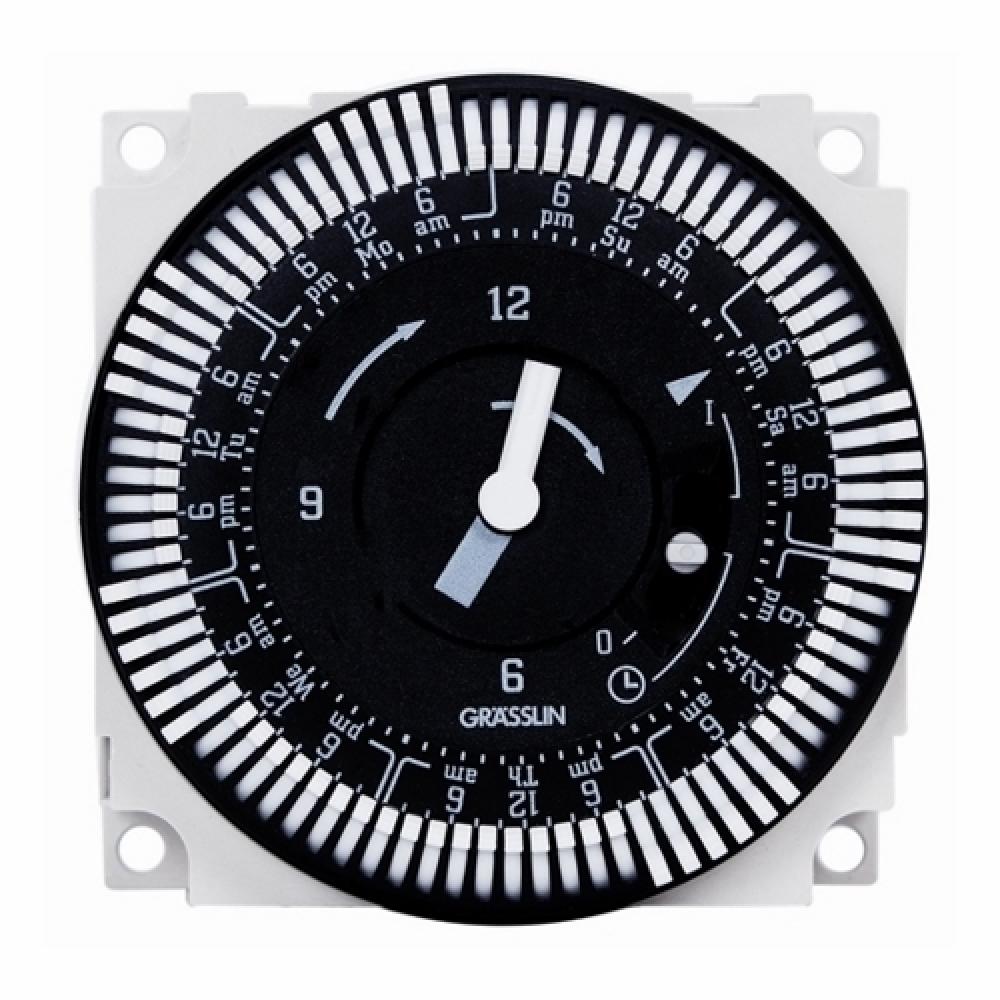

7D TIMER MODULE W/MNL OR SWITCH 120V
Call For Price
- Part Number: FM1SWUZH-120U
- UPC: 00614573122047
- Availability: Call for Availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (3)
Product Overview
Info & Guides
The 7D TIMER MODULE W/MNL OR SWITCH 120V Electromechanical Timer Module is designed to be placed inside a machine control panel, circuit board, or other equipment. It offers up to 21 Amp switching designed for control of heating, ventilation, air conditioning, refrigeration, lighting, security, circulating pumps, spas, OEM applications, or any electrical load requiring 7-Day scheduling.
Specifications
Details
Category:
Lighting Controls
Subcategory:
Lightswitches
Action:
SPDT
Application:
HVACR, Lighting, Security, Circulating Pumps, Spas, OEM Applications
Brand Name:
Intermatic
Connection:
1/4 IN Quick Connect
Contact Configuration:
1 NO/1 NC
Contact Rating:
21 AMP @ 120 - 250 VAC
Country Of Origin:
DE
Length:
3.5000 IN
Mounting:
Panel Mount
Number Of Poles:
1
Operating Temperature:
-40 to +185 DEG F, -40 to +85 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
2.36 HEIGHT X 2.36 WIDTH X 1.25 DEPTH IN, 60 HEIGHT X 60 WIDTH X 32 DEPTH MM
Spec Sheet:
Special Features:
Features: Noise Immune - Ideal for Robust Applications, Synchronous Drive with Battery Backup, True Clock Face Easy-to-Set, Compact Size, With Override Switch
Standard:
CE Certified, HVACR, cULus Recognized #10694, cCSAus Certified LR3730
Stock Type:
Shelf Stock
Sub Brand:
Grasslin
Timer Duration:
7
Timing Range:
2 HR - 7 DAYS
Type:
Synchronous Electromechanical
UNSPSC:
39122208
Voltage Rating:
120
Wattage:
1350
Weight:
0.220 L
