7-Day Heavy-Duty Programmable Timer, 120-277 VAC
Call For Price
- Part Number: EI600C
- UPC: 00078275101401
- Availability: Call for Availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview

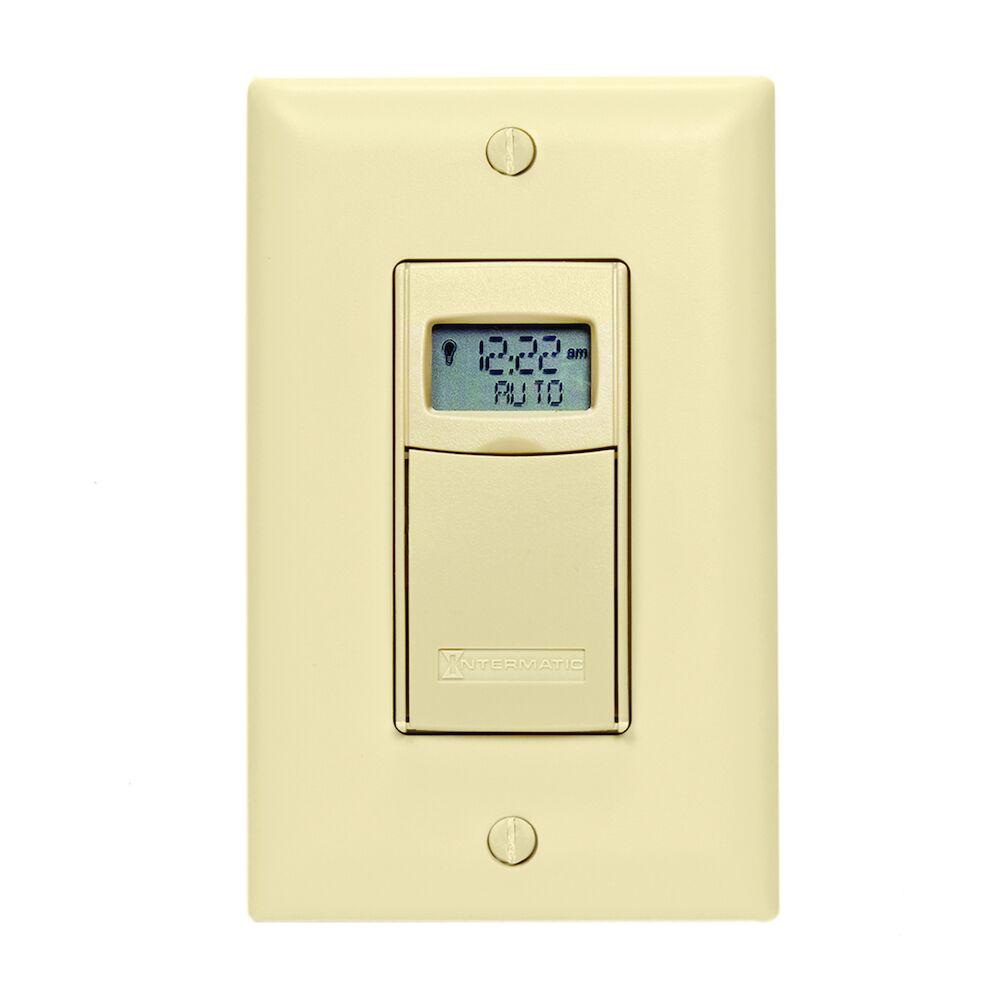

7-Day Heavy-Duty Programmable Timer, 120-277 VAC, 20A, Ivory
Specifications
Details
Category:
Lighting Controls
Action:
1 x SPST
Amperage Rating:
15/20
Application:
Incandescent Lighting, Fluorescent Lighting, HVACR, CFL Lighting, LED Lighting
Brand Name:
Intermatic
Brochure:
Contact Configuration:
1 NO
Contact Rating:
20 AMP @ 120 - 277 VAC (Resistive Heater), 15 AMP @ 120 VAC (Tungsten Incandescent), 6 AMP @ 208 - 277 VAC (Tungsten Incandescent), 16 AMP @ 120 - 277 VAC (Ballast Magnetic), 4 AMP @ 12 VDC (DC Loads), 2 AMP @ 28 VDC (DC Loads)
Country Of Origin:
TH
Installation Link:
Mounting:
Wall Mount
Number Of Poles:
1
Operating Temperature:
+32 to +122 DEG F, 0 to +50 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
No
Size:
2.75 HEIGHT X 1.75 WIDTH X 1.36 DEPTH IN, 69.85 HEIGHT X 44.45 WIDTH X 34.54 DEPTH MM
Spec Sheet:
Special Features:
Features: Auto Daylight Saving Time Adjustment, Low Battery Indicator, CR2 Lithium Battery Provides a minimum of 2 Years of Time Keeping without AC Power, Manual Override Feature, User Program Selections are Stored in Non-Volatile Memory, 5 Year Warranty
Standard:
cCSAus Certified, California TITLE 24 Compliant, HVACR, Title CA 20 Listed
Stock Type:
Shelf Stock
Timer Duration:
7
Timing Range:
1 MIN - 7 DAYS
Type:
Digital In-Wall 7-Day Astronomic
UNSPSC:
39122208
Voltage Rating:
120 - 127 VAC, 12 - 18 VDC
Wall Plate Color:
Ivory
Wattage:
5540
Weight:
.250 L
