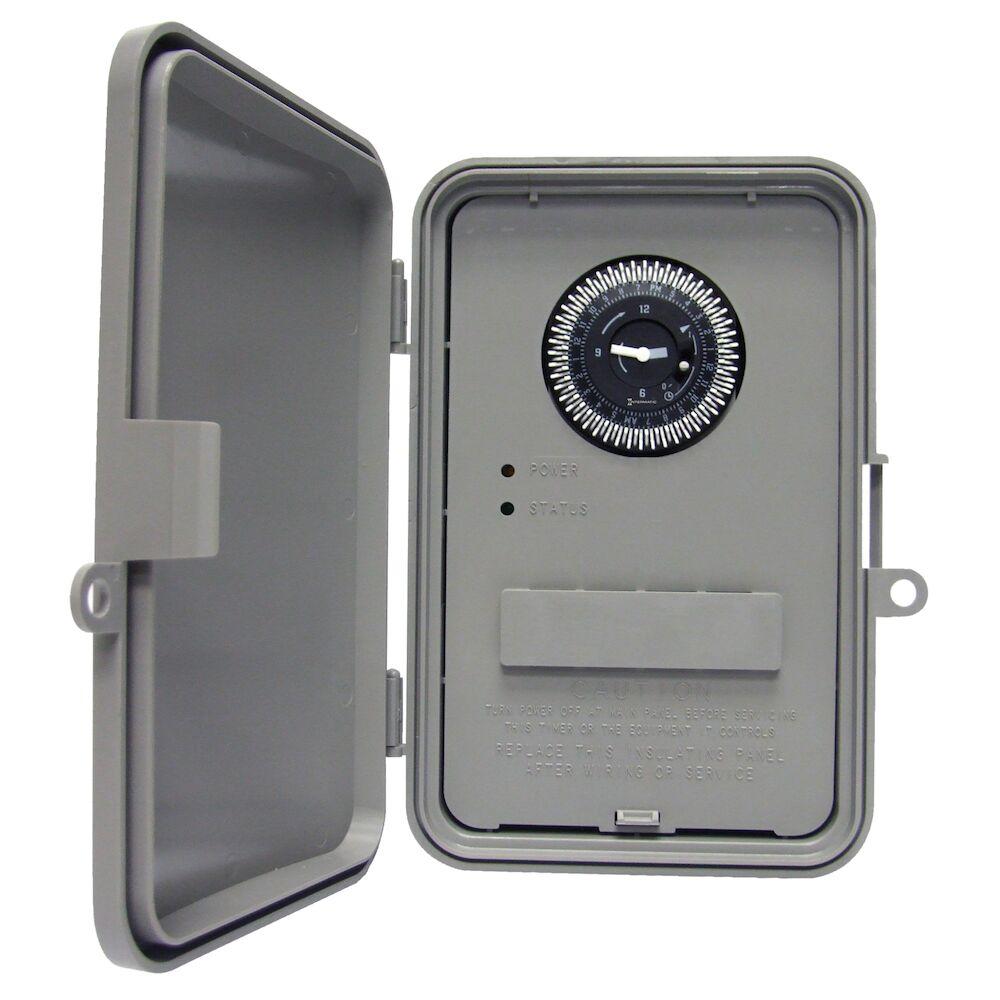

40 A, Autovoltage General Purpose Time Control
Call For Price
- Part Number: GM40AV-Q
- UPC: 00078275140967
- Availability: Call for Availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
40 A, Autovoltage General Purpose Time Control
Specifications
Details
Category:
Lighting Controls
Action:
1 x DPDT
Amperage Rating:
40
Application:
General Purpose, Lighting, HVACR, Pumps, Motors, Fans, Access Controls, Agricultural, Indoor/Outdoor
Brand Name:
Intermatic
Connection:
Screw Box Lug
Contact Configuration:
2 NO/2 NC
Contact Rating:
40 AMP @ 120 - 277 VAC (Resistive NO), 30 AMP @ 120 VAC (Ballast NO), 20 AMP @ 277 VAC (Ballast NO), 15 AMP @ 120 VAC (Tungsten NO), 30 AMP @ 120 - 277 VAC (Resistive NC), 2 AMP @ 120 VAC (Tungsten NC), 10 AMP @ 277 VAC (Ballast NC)
Country Of Origin:
MX
Enclosure:
NEMA 3R Plastic
Environmental Conditions:
0 - 95 RH Non-Condensing
Installation Link:
Mounting:
Wall Mount
Number Of Poles:
2
Operating Cycles:
50000
Operating Temperature:
-4 to +131 DEG F, -20 to +55 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
No
Size:
8.88 HEIGHT X 6.61 WIDTH X 3 DEPTH IN, 22.56 HEIGHT X 16.79 WIDTH X 7.62 DEPTH CM
Spec Sheet:
Special Features:
Features: Power and Status LED Indicators, 96 Captive Trippers Enable 48 ON/OFF Operations each Day, Automatically Adjusts Voltages between 120 and 277 VAC, Manual 3-Way OFF/AUTO/ON Override Switch, Easy-to-Set True Clockface, Mechanism Simply Snaps into m
Standard:
cULus Listed #E10694, HVACR, Title CA 20 Listed
Stock Type:
Shelf Stock
Sub Brand:
Grasslin
Timer Duration:
24
Timing Range:
15 MIN - 24 HR
Type:
Electromechanical Auto-Voltage
UNSPSC:
39122208
Voltage Rating:
120 - 208/240/277
Weight:
1.900 L
