24-Hour or 7-Day 24V Electronic Panel Mount Modu
Call For Price
- Part Number: FM1D14-24U
- UPC: 00078275142794
- Availability: Call for Availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (4)
Product Overview

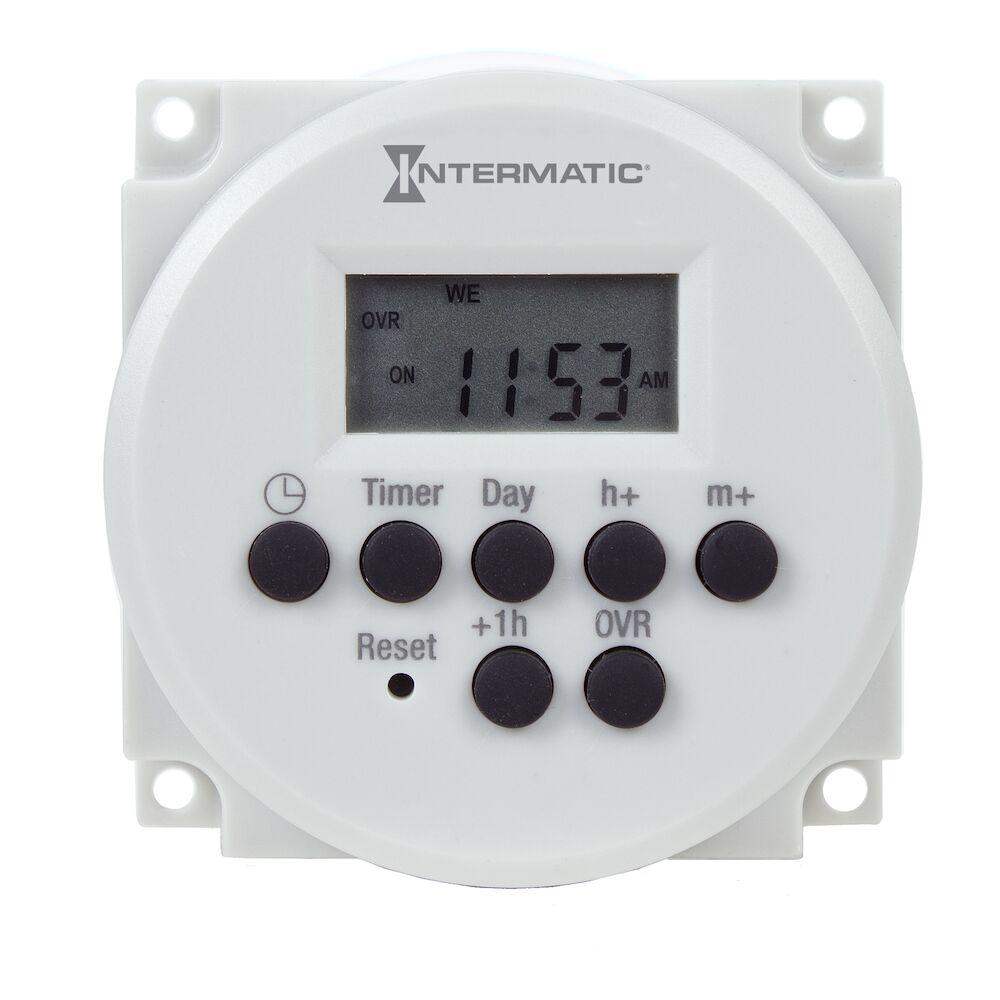

24-Hour or 7-Day 24V Electronic Panel Mount Module, 15A, 14 Setpoint Programs, SPDT
Specifications
Details
Category:
Lighting Controls
Action:
1 x SPDT
Application:
Pumps, Fans, Heaters, HVAC, Machinery, Commercial, Industrial
Brand Name:
Intermatic
Connection:
1/4 IN Quick Connect
Contact Configuration:
1 NO/1 NC
Contact Rating:
15 AMP @ 277 VAC (General Use NO), 8 AMP @ 277 VAC (Ballast NO), 4.9 AMP @ 120 VAC (Electronic Ballast NO), 15 AMP @ 277 VAC (General Use NC), 12 AMP @ 24 VDC (Resistive NC), 8 AMP @ 120 VAC (Ballast NC)
Country Of Origin:
CN
Installation Link:
Mounting:
Panel Mount
Number Of Poles:
1
Operating Temperature:
-40 to +131 DEG F, -40 to +55 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Yes
Size:
2.36 HEIGHT X 2.36 WIDTH X 1.26 DEPTH IN, 60 HEIGHT X 60 WIDTH X 32 DEPTH MM
Spec Sheet:
Special Features:
Features: 14 Setpoint Programs, Easy-to-Program, Manual Override with Status Indication, Rechargeable Battery with Backup Protection up to 2500 Hours, LCD Display, 5 Preset Adjustable Block Programs, 1 Year Warranty
Standard:
cULus Recognized E10694, California TITLE 24 Compliant, HVACR
Stock Type:
Shelf Stock
Sub Brand:
Grasslin
Timer Duration:
24 HR/7 DAYS
Timing Range:
1 MIN - 24 HR/7 DAYS
Type:
One Circuit Electronic
UNSPSC:
39122208
Voltage Rating:
24
Wattage:
1000
Weight:
.237 L
