24-Hour or 7-Day 120V Electronic Panel Mount Mod
Call For Price
- Part Number: FM1D20-120U
- UPC: 00078275116344
- Availability: Call for Availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview

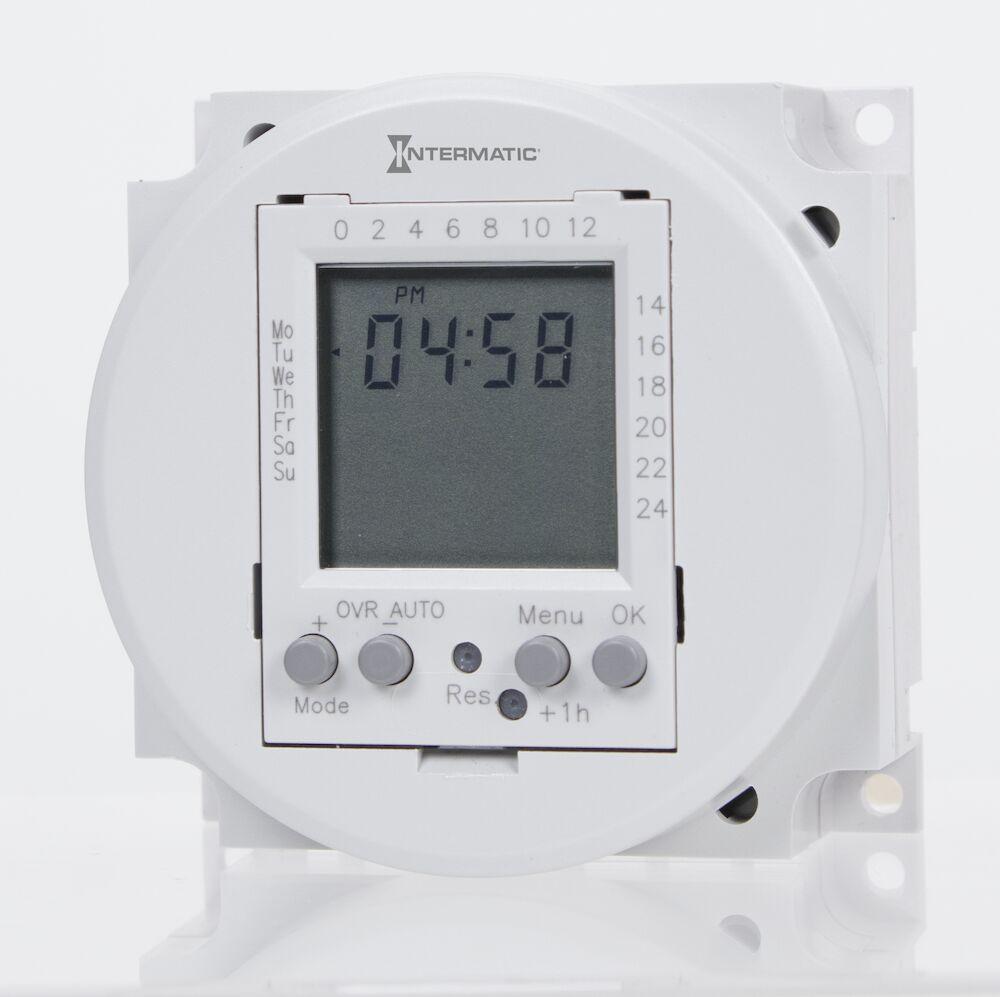

24-Hour or 7-Day 120V Electronic Panel Mount Module, 16A, 20 Setpoint Programs, SPDT
Specifications
Details
Category:
Lighting Controls
Action:
1 x SPDT
Application:
Lighting, HVACR, Commercial, Industrial, Machinery, Pumps, Fans, HVAC
Brand Name:
Intermatic
Connection:
1/4 IN Quick Connect
Contact Configuration:
1 NO/1 NC
Contact Rating:
16 AMP @ 277 VAC (Resistive NO), 12 AMP @ 120 VAC (Ballast NO), 8 AMP @ 240 VAC (Ballast NO), 16 AMP @ 277 VAC (Resistive NC), 8 AMP @ 24 VDC (NC)
Country Of Origin:
CN
Installation Link:
Mounting:
Panel Mount
Number Of Poles:
1
Operating Temperature:
-13 to +131 DEG F, -25 to +55 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Yes
Size:
2.36 HEIGHT X 2.36 WIDTH IN, 60 HEIGHT X 60 WIDTH MM
Spec Sheet:
Special Features:
Features: 20 Setpoint Programs, 3 Preset Adjustable Block Programs, Easy-to-Follow Menu Driven Programming, Manual Override with Status Indication, Battery Backup, Large LCD, 1 Year Warranty
Standard:
cULus Recognized E10694, California TITLE 24 Compliant, HVACR, Title CA 20 Listed
Stock Type:
Shelf Stock
Sub Brand:
Grasslin
Timer Duration:
24 HR/7 DAYS
Timing Range:
1 MIN - 24 HR/7 DAYS
Type:
One Channel Electronic
UNSPSC:
39122208
Voltage Rating:
120
Wattage:
1000
Weight:
.170 L
