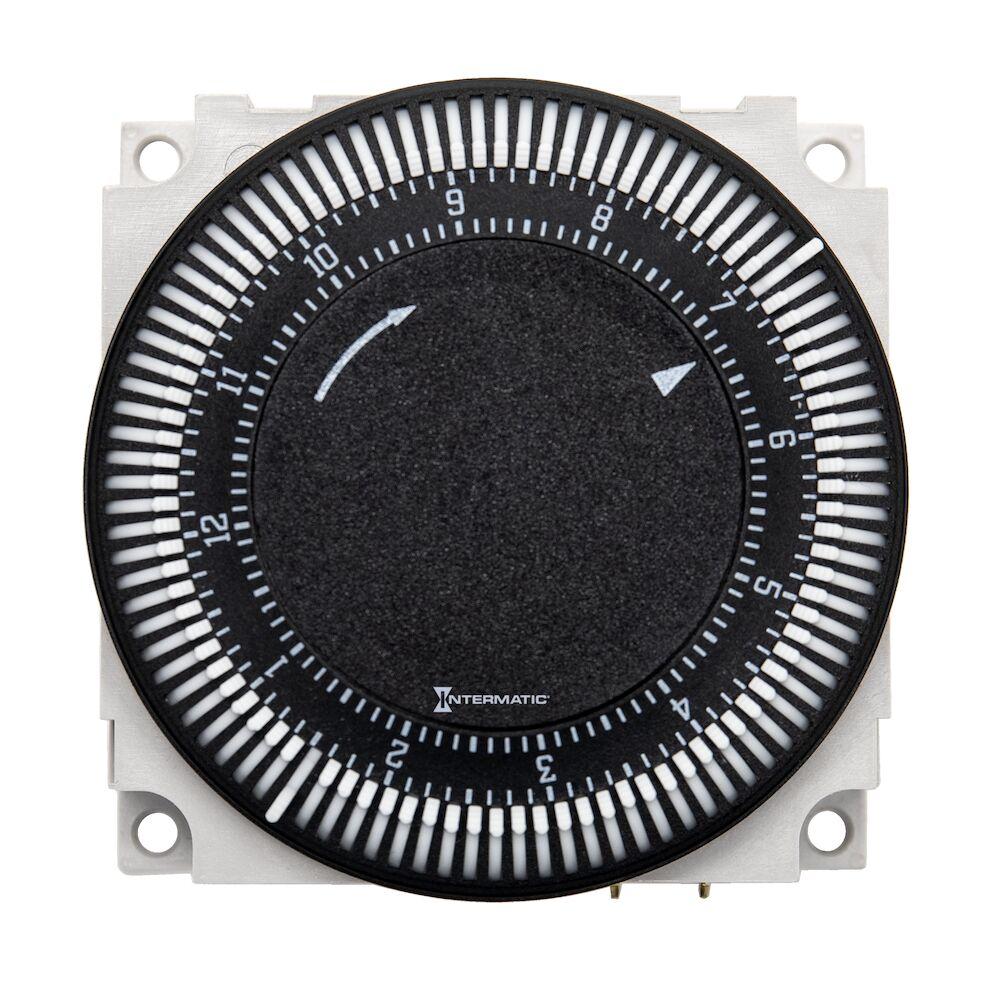

12-Hour 120V Electromechanical Panel Mount Timer
Call For Price
- Part Number: FM1S12HU-120U
- UPC: 00078275152953
- Availability: Call for Availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
12-Hour 120V Electromechanical Panel Mount Timer Control Module, 7.5 Minute Intervals, 21A, SPDT, without Clockface
Specifications
Details
Category:
Lighting Controls
Action:
SPDT
Application:
Industrial, HVACR
Brand Name:
Intermatic
Connection:
1/4 IN Quick Connect
Contact Configuration:
1 NO/1 NC
Contact Rating:
21 AMP @ 250 VAC (Resistive)
Country Of Origin:
MX
Installation Link:
Mounting:
Panel Mount
Number Of Poles:
1
Operating Temperature:
-40 to +185 DEG F, -40 to +85 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
No
Size:
2.36 HEIGHT X 2.36 WIDTH IN, 60 HEIGHT X 60 WIDTH MM
Spec Sheet:
Special Features:
Features: Captive Trippers Enable up to 48 ON and 48 OFF Times in 7.5 Minute Intervals
Standard:
cCSAus Certified LR3730, CE Certified, cULus Recognized E10694, HVACR
Stock Type:
Shelf Stock
Sub Brand:
Grasslin
Timer Duration:
12
Timing Range:
7.5 MIN - 12 HR
Type:
Synchronous Motor Driven Repeat Cycle
UNSPSC:
39122208
Voltage Rating:
120
Wattage:
1350
