SPL CAP, 50PC BAG
Call For Price
- Part Number: 2011S
- UPC: 00781789450070
- Availability: Call for Availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

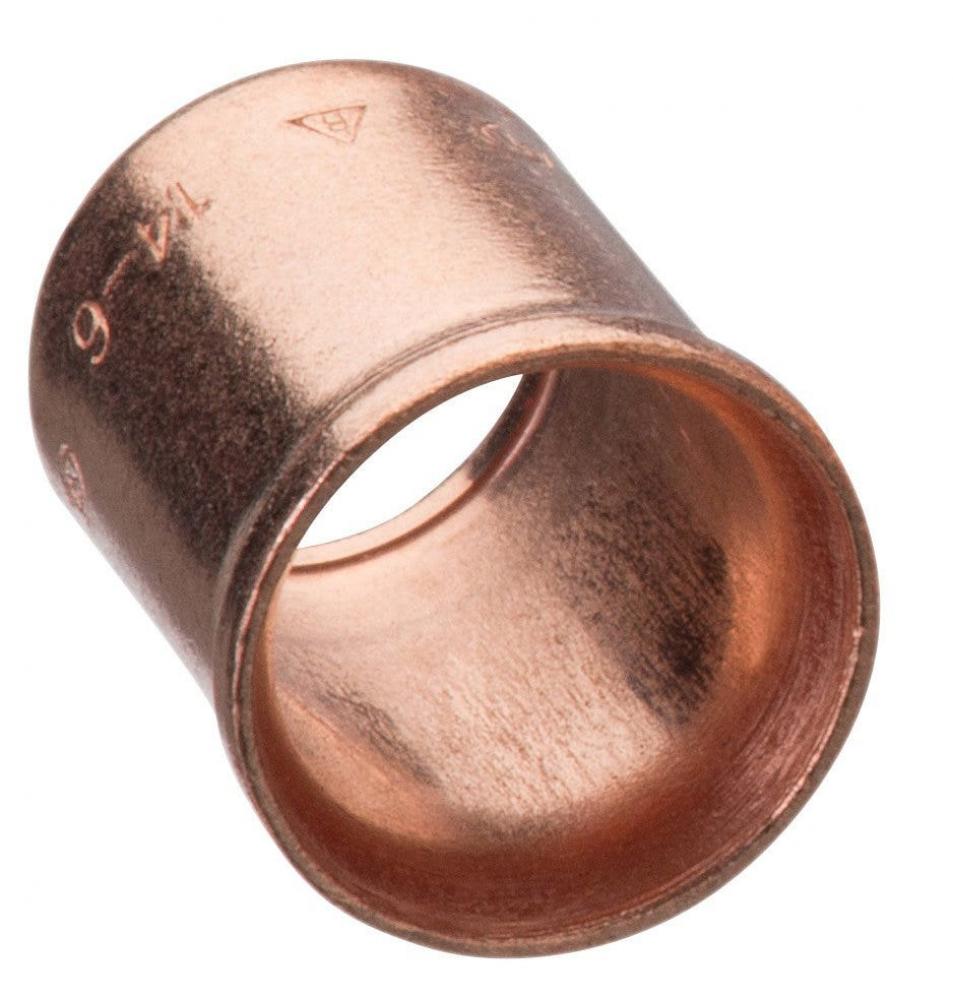

Buchanan, Crimp Connector, Splice Cap, Conductor Range: 14 - 4 AWG, 10/2 AWG Min, 6/2 AWG AWG Max, Finish: Zinc-Plated, Tin-Plated Steel Sleeves, Material: Copper Sleeves, Voltage Rating: 600 V
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
For Buchanan C24 Crimp Tool And Designed For Fast, Permanent, Pressure-Type Connections
Brand Name:
Buchanan
Brochure:
Compare Number:
100
Conductor Range:
14 - 4 AWG, 10/2 AWG Min, 6/2 AWG AWG Max
Country Of Origin:
USA
Finish:
Zinc-Plated, Tin-Plated Steel Sleeves
Material:
Copper Sleeves
MsdsURL:
https://idw.ideaservices.net/files/11020/splice_cap_connectors_msds.pdf
Order Minimum:
500.000 EA
Order Multiple:
500.000 EA
RoHS Compliance:
Yes
Special Features:
Features: For #14 to #4 AWG Wire; Minimum 2 #10 AWG Wire; Maximum 2 #6 AWG Wire; Use Buchanan C24 Crimp Tool; Designed For Fast, Permanent, Pressure-Type Connections; UL; Listed And CSA Certified; Zinc-Plated Or Copper Sleeves Resist Corrosion Resist Corro
Standard:
CSA, UL Listed, RoHS
Stock Type:
Shelf Stock
Type:
Splice Cap
UNSPSC:
39121449
Voltage Rating:
600
Weight:
.250 L
