Return

Spitfire Motor - DZCall for Availability

555

/ 1

Part Number: MA6721BDZ
UPC: 00840506085497
Availability: Call for Availability

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

Info & Guides

Click Here to View Specsheets

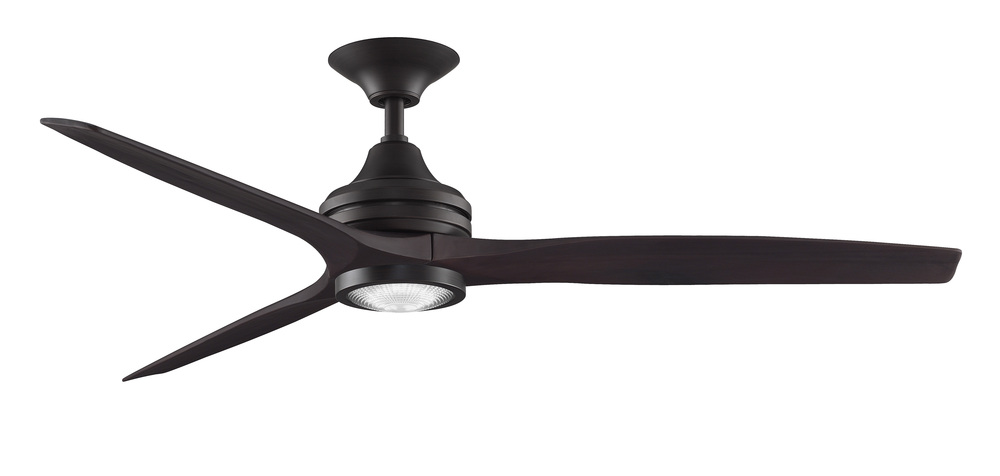

The Spitfire Custom features an exquisite three bladed design with many rich finish offerings to choose from. It is available in a 48 or 60 inch blade sweep and features an optional LED light kit. Handheld remote included. *Damp rated for indoor or outdoor use. *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use

Specifications

Energy Information at High Speed

Airflow:

6641 Cubic Feet per Minute

Electricity Rate:

61 Watts (excluded lights)

Airflow Efficiency:

108 Cubic Feet Per Minute Per Watt

Details

Category:

Fans

Subcategory:

Fan Motor Without Blades

Finish:

Bronze /vendors/vendorImages bronze.jpg

Style:

Traditional

Option:

Damp Rated

Voltage:

10-99

Number of Blades:

3 Blades

Subfinish:

Dark Bronze

Location Rating:

Damp Rated

Category:

Fan-Multi

Family:

Spitfire

Voltage:

120

Additional Info:

3 speed AC motor with reverse switch, fan speed, light controls and sleep timer features

5227 CFM on High

Limited Lifetime Warranty

Set of 3 Damp Rated blades with multiple finishes and 18 watt LED light kit available (sold separate

TR500 handheld remote with 23A battery included

WiFi or bluetooth compatible (required controls sold separately)

Air Flow CFM:

6641

Air Flow Efficiency:

108

Amperage:

0.52

Blade Pitch:

Canopy:

Diameter- 7.09 Height- 2.2

Diameter:

8.07

Down Rod Included:

4.5

Electricity Used:

Harmonized Codes:

8414.51.3000

Length:

Light Kit Included:

Max Length:

Max Width:

Motor Fan Speed:

Motor RPM:

130

Motor Size:

188 x 25

Motor Type:

Remote Control Included:

TR500

Ship Carton Height:

10.91

Ship Carton Length:

14.49

Ship Carton Width:

10.47

Ship Weight:

17.85

Sold By:

Each

Warranty:

Limited Lifetime Warranty

Weight:

16.34

Airflow Efficiency Low:

175

Airflow Efficiency Medium:

128

Avg Airflow Efficiency:

Avg CFM Energy:

3776

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Cap Included:

Carton Cubic Feet:

0.9578

Cartons Per Unit:

Case Height:

10.91

Case Length:

14.49

Case Weight Pounds:

17.85

Case Width:

10.47

CEC Uploaded:

Yes

Ceiling To Blade Edge:

Ceiling to Bottom No LK:

Ceiling to Bottom with LK:

13.71

CFM Low:

2433

CFM Medium:

4614

Compatible Accessories:

DR1-12DZ, DR1-18DZ, DR1-24DZ, DR1-36DZ, DR1-48DZ, DR1-60DZ, DR1-72DZ, DR1-CPDZ, SCK1-52DZ

Compatible Blades:

B6720BL, B6720BN, B6720DF, B6720DWA, B6720N, B6720WE, B6720WK, B6720WW

Compatible Controls:

BTCR9, BTR9, CRL4WH, WFR50

Compatible Light Kits:

LK6721BDZ

Compatible Wall Controls:

CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH

Country of Origin:

China

Current Draw Low:

0.25

Current Draw Medium:

0.4

Damp Rated:

Yes

DOE Classification:

LSSD

Exempt from DOE Procedure:

Fan Energy Star:

Included Control Type:

Handheld

Leadwire:

Maximum Slope Degree:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Product Certification:

UL/CUL

Regulated Product:

Yes

Reverse Switch Location:

Motor Housing

RPM Low II:

RPM Medium IV:

Safety Rating:

UL/cUL

Voltage Cycles:

60HZ

Watts Low:

Watts Medium:
